Séria K – GARS-R
kĺbové hlavice na použitie v korozívnom prostredí
(vyžadujúce údržbu), vonkajší závit
púzdro:
kované z nehrdzavejúcej ocele 1.4057, Aisi 431, leštené
veľkosť 40 sústružená z nehrdzavejúcej ocele 1.4057, Aisi 431
vložka:
špeciálny vysokopevnostný bronz CuSn8
guľa:
tvrdená nehrdzavejúca oceľ 1.4034, leštená
Na vyžiadanie tiež s tesnením alebo so závitovou skrutkou

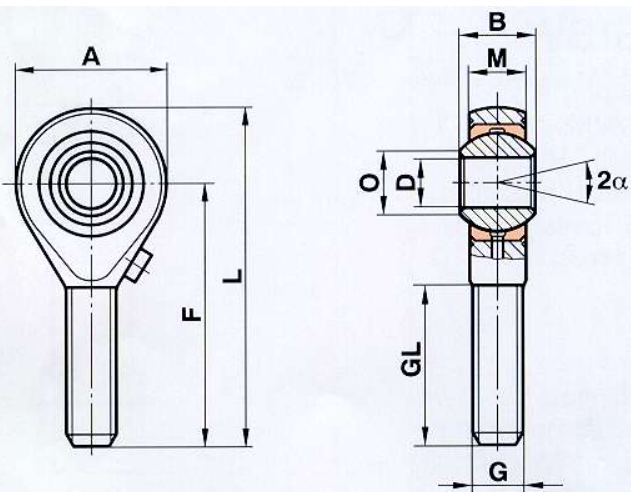

Size (D H7) | B | M | A | F | L | O | G | GL | Static load C0 kN | Dynamic load C kN | Limiting speed rev/min | Pivoting angle α (o) | Weight (g) |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
3 | 6 | 4.5 | 14 | 26 | 33 | 5.1 | M3 | 15 | 7 | 1.8 | 14 | 6 | |
5 | 8 | 6 | 18 | 33 | 42 | 7.7 | M5 | 19 | 6.2 | 3.3 | 13 | 13 | |
6 | 9 | 6.75 | 20 | 36 | 46 | 8.9 | M6 | 21 | 8.8 | 4.3 | 1500 | 13 | 20 |
8 | 12 | 9 | 24 | 42 | 54 | 10.4 | M8 | 25 | 16.1 | 7.1 | 1200 | 14 | 33 |
10 | 14 | 10.5 | 28 | 48 | 62 | 12.9 | M10 | 28 | 25.5 | 10 | 1000 | 13 | 56 |
12 | 16 | 12 | 32 | 54 | 70 | 15.4 | M12 | 32 | 34.5 | 13.5 | 860 | 13 | 87 |
14 | 19 | 13.5 | 36 | 60 | 78 | 16.8 | M14 | 38 | 39.5 | 17 | 750 | 16 | 129 |
16 | 21 | 15 | 42 | 66 | 87 | 19.3 | M16 | 40 | 60.5 | 21.5 | 660 | 15 | 189 |
18 | 23 | 16.5 | 46 | 72 | 95 | 21.8 | M18x1.5 | 44 | 73 | 26 | 600 | 15 | 267 |
20 | 25 | 18 | 50 | 78 | 103 | 24.3 | M20x1.5 | 47 | 83 | 31.5 | 540 | 14 | 348 |
22 | 28 | 20 | 54 | 84 | 111 | 25.8 | M22x1.5 | 51 | 100 | 38 | 500 | 15 | 443 |
25 | 31 | 22 | 60 | 94 | 124 | 29.6 | M24x2 | 57 | 118 | 47 | 440 | 15 | 600 |
30 | 37 | 25 | 70 | 110 | 145 | 34.8 | M30x2 | 71 | 155 | 64 | 370 | 17 | 1030 |
35 | 43 | 28 | 80 | 125 | 165 | 37.7 | M36x2 | 73 | 191 | 80 | 330 | 19 | 1600 |
40 | 49 | 35 | 90 | 142 | 187 | 44.2 | M42x2 | 78 | 235 | 116 | 290 | 16 | 2570 |
