Séria K – GAXS
| kĺbové hlavice vhodné pre zaťaženie vysokým tlakom a ťahom (vyžadujúce údržbu), vonkajší závit |
púzdro:
kované z tepelne upravenej ocele 42CrMo4, Aisi 4140, pozinkované
vložka:
špeciálny vysokopevnostný bronz CuSn8
guľa:
ložisková oceľ 100Cr6, Aisi 52100, tvrdená, leštená
Na vyžiadanie tiež s tesnením alebo so závitovou skrutkou

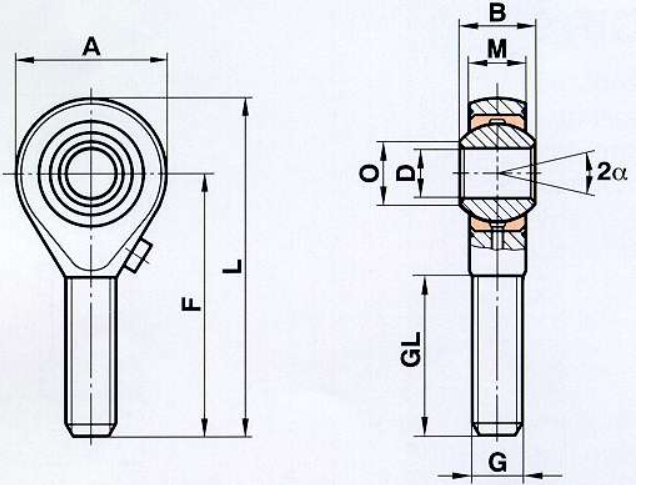

| Size (D H7) | B | M | A | F | L | O | G | GL | Static load C0 kN | Dynamic load C kN | Limiting speed rev/min | Pivoting angle α (o) | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6 | 9 | 6.75 | 20 | 36 | 46 | 8.9 | M6 | 21 | 9.8 | 4.3 | 1500 | 13 | 20 |
