Séria K – GAXSW
kĺbové hlavice vhodné pre zaťaženie vysokým tlakom a ťahom
(bezúdržbové), vonkajší závit
púzdro:
kované z tepelne upravenej ocele 42CrMo4, Aisi 4140, pozinkované
vložka:
automatová ocel 9SMnPb28K, 12L13, pozinkované, s PTFE vložkou
guľa:
ložisková oceľ 100Cr6, Aisi 52100, tvrdená, leštená
Na požiadanie tiež s tesnením alebo so závitovou skrutkou

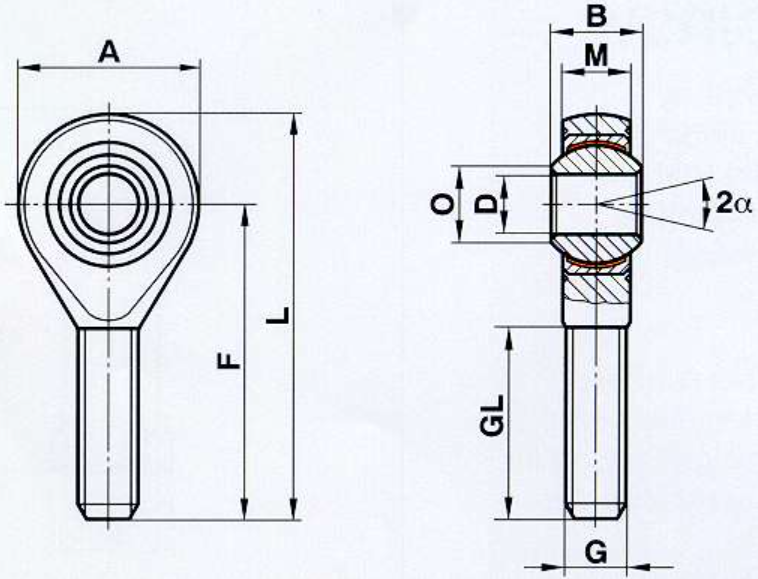

| Size (D H7) | B | M | A | F | L | O | G | GL | Static load C0 kN | Dynamic load C kN | Limiting speed rev/min | Pivoting angle α (o) | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6 | 9 | 6.75 | 20 | 36 | 46 | 8.9 | M6 | 21 | 9.8 | 9.3 | 530 | 13 | 20 |
| 8 | 12 | 9 | 24 | 42 | 54 | 10.4 | M8 | 25 | 19.5 | 16.7 | 420 | 14 | 33 |
| 10 | 14 | 10.5 | 28 | 48 | 62 | 12.9 | M10 | 28 | 31.4 | 23.4 | 350 | 13 | 56 |
| 12 | 16 | 12 | 32 | 54 | 70 | 15.4 | M12 | 29 | 42 | 32 | 300 | 13 | 87 |
| 14 | 19 | 13.5 | 36 | 60 | 78 | 16.8 | M14 | 38 | 57 | 42 | 260 | 16 | 129 |
| 16 | 21 | 15 | 42 | 66 | 87 | 19.3 | M16 | 40 | 67 | 52.5 | 230 | 15 | 189 |
| 18 | 23 | 16.5 | 46 | 72 | 95 | 21.8 | M18x1.5 | 44 | 81.5 | 64 | 210 | 15 | 267 |
| 20 | 25 | 18 | 50 | 78 | 103 | 24.3 | M20x1.5 | 47 | 93.5 | 78 | 190 | 14 | 348 |
| 22 | 28 | 20 | 54 | 84 | 111 | 25.8 | M22x1.5 | 51 | 114 | 97 | 170 | 15 | 443 |
| 25 | 31 | 22 | 60 | 94 | 124 | 29.6 | M24x2 | 57 | 135 | 122 | 150 | 15 | 600 |
| 30 | 37 | 25 | 70 | 110 | 145 | 34.8 | M30x2 | 70 | 184 | 168 | 130 | 17 | 1030 |
| 35 | 43 | 28 | 80 | 125 | 165 | 37.7 | M36x2 | 73 | 230 | 205 | 110 | 19 | 1600 |
