GE – AW
klzné ložiská pre axiálne zaťaženia, styčná plocha tvrdý chróm/PTFE, bezúdržbové
vonkajší disk:
ložisková oceľ 100Cr6, AISI 52100, tvrdená, s PTFE vložkou na vnútornej strane
vnútorný krúžok:
ložisková oceľ 100Cr6, AISI 52100, tvrdená, leštená, tvrdý chróm
Na vyžiadanie dostupné vo vyhotovení z nehrdzavejúcej ocele

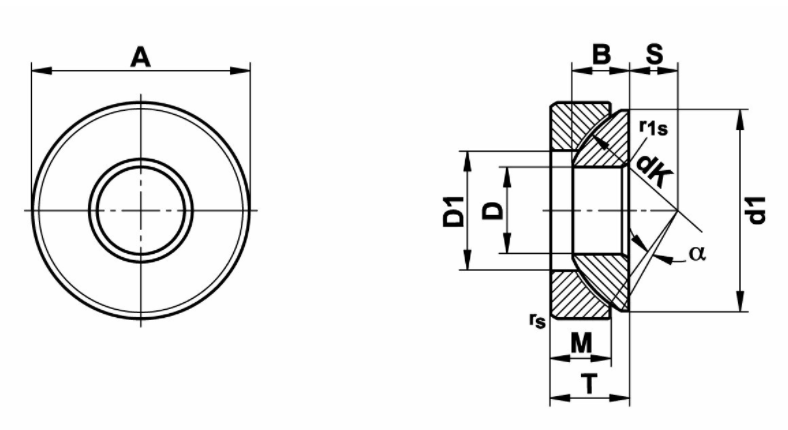

| Size (D) | B | M | A | T | S | r1, r1s min | D1 max | D1 min | dK | Static axial load C0 kN | Dynamic axial load C kN | Pivoting angle α (o) | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 10 0 -0.008 | 7.5 | 7 | 30 0 -0.009 | 9.5 +0.25 -0.40 | 7 | 0.6 | 27.5 | 15.5 | 32 | 120 | 45 | 5 | 36 |
| 12 0 -0.008 | 9.5 | 9.3 | 35 0 -0.011 | 13 +0.25 -0.40 | 8 | 0.6 | 32 | 18 | 38 | 165 | 65 | 5 | 72 |
| 15 0 -0.008 | 11 | 10.8 | 42 0 -0.011 | 15 +0.25 -0.40 | 10 | 0.6 | 39 | 22.5 | 46 | 235 | 95 | 6 | 108 |
| 17 0 -0.008 | 11.8 | 11.2 | 47 0 -0.011 | 16 +0.25 -0.40 | 11 | 0.6 | 43.5 | 27 | 52 | 275 | 110 | 4 | 137 |
| 20 0 -0.010 | 14.5 | 13.8 | 55 0 -0.013 | 20 +0.25 -0.40 | 12.5 | 1 | 50 | 31 | 60 | 380 | 150 | 5 | 246 |
| 25 0 -0.010 | 16.5 | 16.7 | 62 0 -0.013 | 22.5 +0.25 -0.40 | 14 | 1 | 58.5 | 34.5 | 68 | 600 | 245 | 5 | 415 |
| 30 0 -0.010 | 19 | 19 | 75 0 -0.013 | 26 +0.25 -0.40 | 17.5 | 1 | 70 | 42 | 82 | 820 | 335 | 5 | 614 |
| 35 0 -0.012 | 22 | 20.7 | 90 0 -0.015 | 28 +0.25 -0.40 | 22 | 1 | 84 | 50.5 | 98 | 1200 | 490 | 5 | 973 |
| 40 0 -0.012 | 27 | 21.5 | 105 0 -0.015 | 32 +0.25 -0.40 | 24.5 | 1 | 97 | 59 | 114 | 1640 | 675 | 6 | 1590 |
| 45 0 -0.012 | 31 | 25.5 | 120 0 -0.015 | 36.5 +0.25 -0.40 | 27.5 | 1 | 110 | 67 | 128 | 2240 | 915 | 6 | 2240 |
| 50 0 -0.012 | 33 | 30.5 | 130 0 -0.018 | 42.5 +0.25 -0.40 | 30 | 1 | 120 | 70 | 139 | 2550 | 1040 | 6 | 3140 |
| 60 0 -0.015 | 37 | 34 | 150 0 -0.018 | 45 +0.25 -0.50 | 35 | 1 | 140 | 84 | 160 | 3470 | 1360 | 6 | 4630 |
| 70 0 -0.015 | 42 | 36.5 | 160 0 -0.025 | 50 +0.25 -0.50 | 35 | 1 | 153 | 94.5 | 176 | 4180 | 1640 | 3 | 5370 |
| 80 0 -0.015 | 43.5 | 38 | 180 0 -0.025 | 50 +0.25 -0.50 | 42.5 | 1 | 172 | 107.5 | 197 | 5180 | 2030 | 4 | 6910 |
| 100 0 -0.020 | 51 | 46 | 210 0 -0.030 | 59 +0.25 -0.60 | 45 | 1.1 | 198 | 127 | 222 | 5940 | 2230 | 4 | 11000 |
| 120 0 -0.020 | 53.5 | 50 | 230 0 -0.030 | 64 +0.25 -0.60 | 52.5 | 1.1 | 220 | 145 | 250 | 6960 | 2610 | 3 | 14000 |
| 140 0 -0.025 | 61 | 54 | 260 0 -0.035 | 72 +0.35 -0.70 | 52.5 | 1.5 | 243 | 177 | 274 | 8300 | 3120 | 3 | 19100 |
| 160 0 -0.025 | 66 | 58 | 290 0 -0.035 | 77 +0.35 -0.70 | 65 | 1.5 | 271 | 200 | 313 | 9560 | 3380 | 2 | 25000 |
| 180 0 -0.025 | 74 | 62 | 320 0 -0.040 | 86 +0.35 -0.70 | 67.5 | 1.5 | 299 | 225 | 340 | 11050 | 3910 | 4 | 32800 |
| 200 0 -0.030 | 80 | 66 | 340 0 -0.040 | 87 +0.35 -0.80 | 70 | 1.5 | 320 | 247 | 365 | 13990 | 4950 | 1 | 35400 |
| 220 0 -0.030 | 82 | 67 | 370 0 -0.040 | 97 +0.35 -0.80 | 75 | 1.5 | 350 | 265.5 | 388 | 13110 | 4640 | 7 | 44700 |
| 240 0 -0.030 | 87 | 73 | 400 0 -0.040 | 103 +0.35 -0.80 | 77.5 | 1.5 | 382 | 294 | 420 | 15560 | 5500 | 6 | 56900 |
| 260 0 -0.035 | 95 | 80 | 430 0 -0.045 | 115 +0.35 -0.80 | 82.5 | 1.5 | 409 | 317 | 449 | 17510 | 6190 | 7 | 71300 |
| 280 0 -0.035 | 100 | 85 | 460 0 -0.045 | 110 +0.35 -0.80 | 80 | 3 | 445 | 337 | 480 | 23400 | 8280 | 4 | 84700 |
| 300 0 -0.035 | 100 | 90 | 480 0 -0.045 | 110 +0.35 -0.80 | 80 | 3 | 460 | 356 | 490 | 25480 | 9010 | 3.5 | 88900 |
| 320 0 -0.040 | 105 | 91 | 520 0 -0.050 | 116 +0.35 -0.80 | 95 | 4 | 500 | 380 | 540 | 33260 | 11360 | 4 | 111000 |
| 340 0 -0.040 | 105 | 91 | 540 0 -0.050 | 116 +0.35 -0.80 | 95 | 4 | 510 | 380 | 550 | 33880 | 11570 | 4 | 117000 |
| 360 0 -0.040 | 115 | 95 | 540 0 -0.050 | 125 +0.35 -0.80 | 95 | 4 | 535 | 400 | 575 | 37630 | 12850 | 4 | 132000 |
