GE-AWE

vysoko odolné klzné ložiská na použitie pri vysokých axiálnych zaťaženiach (FLUROGLIDE®), bezúdržbové

Vonkajší disk:
ložisková oceľ 100Cr6, tvrdená, fosfátovaná, s FLUROGLIDE vložkou

Vnútorný disk:
ložisková oceľ 100Cr6, tvrdená, leštená, tvrdný chróm

Na vyžiadanie dostupné v prevedení z nehrdzavejúcej ocele.

CAD DATA

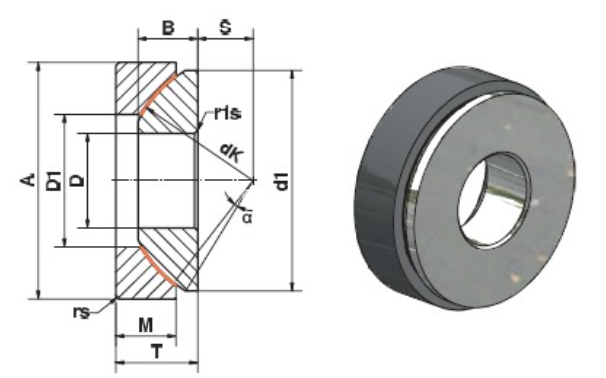

Size (D)BMATSrs, r1s mind1 maxD1 mindKStatic axial load C0 kNDynamic axial load C kNTilting angle α (o)≈Weight (g)
10 0
-0.008
7.5730 0
-0.009
9.5 +0.25
-0.40
70.627.5173214688536
12 0
-0.008
9.59.335 0
-0.011
13 +0.25
-0.40
80.6322038195117572
15 0
-0.008
1110.842 0
-0.011
15 +0.25
-0.40
100.63924.5462781676108
17 0
-0.008
11.811.247 0
-0.011
16 +0.25
-0.40
110.643.528.5523502104137
20 0
-0.010
14.513.855 0
-0.013
20 +0.25
-0.40
12.515034604102465246
25 0
-0.010
16.516.762 0
-0.013
22.5 +0.25
-0.40
14158.535687184315415
30 0
-0.010
191975 0
-0.013
26 +0.25
-0.40
17.517044.5829205525614
35 0
-0.012
2220.790 0
-0.015
28 +0.25
-0.40
2218452.59813408045973
40 0
-0.012
2721.5105 0
-0.015
32 +0.25
-0.40
24.519759.51141789107361590
45 0
-0.012
3125.5120 0
-0.015
36.5 +0.25
-0.40
27.5111068.51282263135762240
50 0
-0.012
3330.5130 0
-0.018
42.5 +0.25
-0.40
301120711392836170263140
60 0
-0.015
3734150 0
-0.018
45 +0.25
-0.50
35114086.51603790227464630
70 0
-0.015
4236.5160 0
-0.025
50 +0.25
-0.50
35115395.51764887293235370
80 0
-0.015
43.538180 0
-0.025
50 +0.25
-0.50
42.511721091975908354546910
100 0
-0.020
5146210 0
-0.030
59 +0.25
-0.60
451.119813422270184210411000
120 0
-0.020
53.550230 0
-0.030
64 +0.25
-0.60
52.51.122015525081624897314000
140 0
-0.025
6154260 0
-0.035
72 +0.35
-0.70
52.51.524317727493725623319100
160 0
-0.025
6658290 0
-0.035
77 +0.35
-0.70
651.5271200313116807008225000
180 0
-0.025
7462320 0
-0.040
86 +0.35
-0.70
67.51.5299225340123647418432800
200 0
-0.030
8066340 0
-0.040
87 +0.35
-0.80
701.5320247365153509210135400
220 0
-0.030
8267370 0
-0.040
97 +0.35
-0.80
751.5350265.538841198471744700
240 0
-0.030
8773400 0
-0.040
103 +0.35
-0.80
77.51.53822944201717610305656900
260 0
-0.035
9580430 0
-0.045
115 +0.35
-0.80
82.51.54093174491801910811771300
280 0
-0.035
10085460 0
-0.045
110 +0.35
-0.80
8034453374802856117136484700
300 0
-0.035
10090480 0
-0.045
110 +0.35
-0.80
80346035649028809172853.588900
