GE – AX

klzné ložiská pre axiálne zaťaženia, Steel-on-Steel, znovu namazateľné

vonkajší disk:
ložisková oceľ 100Cr6, AISI 52100, tvrdená, ošetrené disulfidom molybdénu MoS2

vnútorný krúžok:
ložisková oceľ 100Cr6, AISI 52100, tvrdená, ošetrené disulfidom molybdénu MoS2

3D CAD DATA

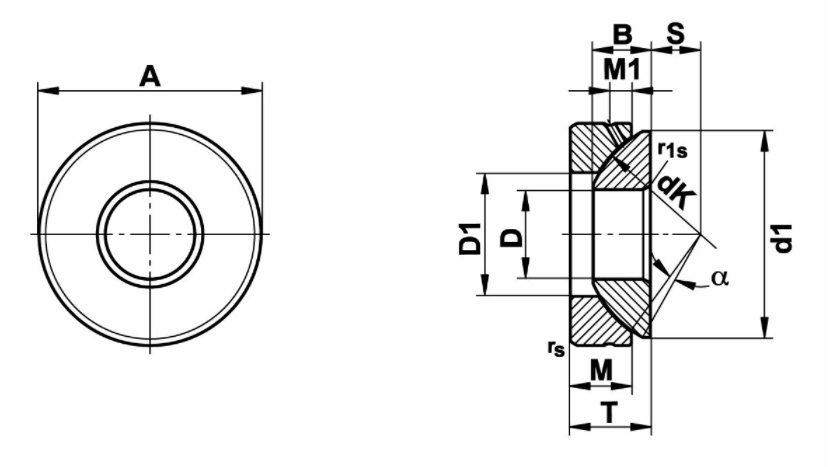

Size (D)BMATSM1r1, r1s minD1 maxD1 mindKStatic axial load C0 kNDynamic axial load C kNPivoting angle α (o)Weight (g)
10 0
-0.008		7.5730 0
-0.009		9.5 +0.25
-0.40		730.627.515.53213627536
12 0
-0.008		9.59.335 0
-0.011		13 +0.25
-0.40		840.632183818837572
15 0
-0.008		1110.842 0
-0.011		15 +0.25
-0.40		1050.63922.546267536108
17 0
-0.008		11.811.247 0
-0.011		16 +0.25
-0.40		1150.643.52752311614137
20 0
-0.010		14.513.855 0
-0.013		20 +0.25
-0.40		12.561503160425845246
25 0
-0.010		16.516.762 0
-0.013		22.5 +0.25
-0.40		146158.534.5686721345415
30 0
-0.010		191975 0
-0.013		26 +0.25
-0.40		17.5817042829091825614
35 0
-0.012		2220.790 0
-0.015		28 +0.25
-0.40		22818450.59813302665973
40 0
-0.012		2721.5105 0
-0.015		32 +0.25
-0.40		24.5919759114181035761590
45 0
-0.012		3125.5120 0
-0.015		36.5 +0.25
-0.40		27.511111067128247048662240
50 0
-0.012		3330.5130 0
-0.018		42.5 +0.25
-0.40		3010112070139281055463140
60 0
-0.015		3734150 0
-0.018		45 +0.25
-0.50		3512.5114084160382074864630
70 0
-0.015		4236.5160 0
-0.025		50 +0.25
-0.50		3513.5115394.5176461090235370
80 0
-0.015		43.538180 0
-0.025		50 +0.25
-0.50		42.514.51172107.51975700111046910
100 0
-0.020		5146210 0
-0.030		59 +0.25
-0.60		45151.119812722264701300411000
120 0
-0.020		53.550230 0
-0.030		64 +0.25
-0.60		52.516.51.122014525075801530314000
140 0
-0.025		6154260 0
-0.035		72 +0.35
-0.70		52.5231.524317727490401820319100
160 0
-0.025		6658290 0
-0.035		77 +0.35
-0.70		65231.5271200313104402100225000
180 0
-0.025		7462320 0
-0.040		86 +0.35
-0.70		67.5261.5299225340120702430432800
200 0
-0.030		8066340 0
-0.045		87 +0.35
-0.80		70271.5320247365152803070135400
