GE-CW & GE-CW (-2RS)
guľové klzné ložiská s väčším uhlom sklonu vďaka širšiemu vnútornému krúžku (FLUROGLIDE®), DIN ISO 12240-1, bezúdržbové
vonkajší krúžok:
kalená a popúšťaná oceľ, FLUROGLIDE na vnútornej strane
vnútorný krúžok:
ložisková oceľ 100Cr6, tvrdená, leštená, tvrdý chróm

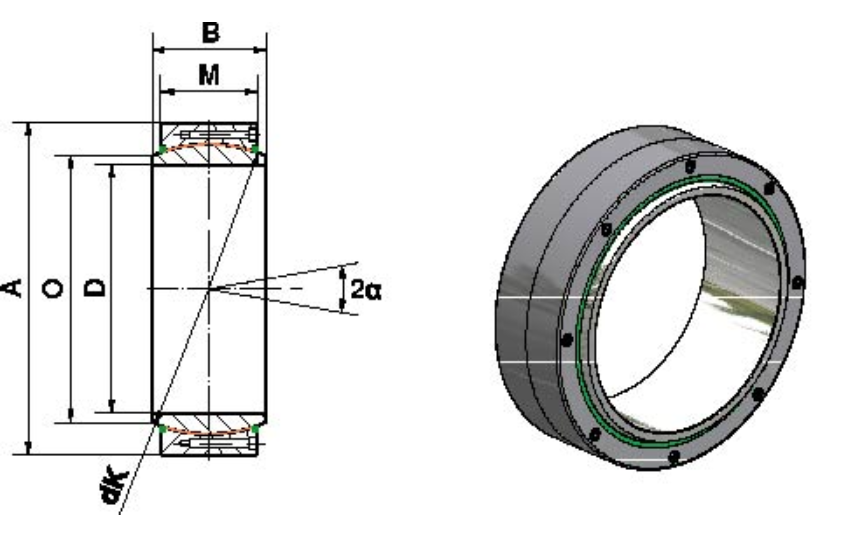

| Size (D) | B | M | A | O | dK | Static load C0 kN | Dynamic load C kN | Tilting angle α (o) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 320 0 -0.040 | 160 | 135 0 -0.90 | 440 0 -0.045 | 344.6 | 380 | 25.48 | 15.29 | 4 | 76 |
| 340 0 -0.040 | 160 | 135 0 -0.90 | 460 0 -0.045 | 366.6 | 400 | 26.83 | 16.095 | 3.8 | 80 |
| 360 0 -0.040 | 160 | 135 0 -0.90 | 480 0 -0.045 | 388.3 | 420 | 28.17 | 16.9 | 3.6 | 86 |
| 380 0 -0.040 | 190 | 160 0 -1.0 | 520 0 -0.050 | 407.9 | 450 | 35.795 | 21.475 | 4.1 | 124.5 |
| 400 0 -0.040 | 190 | 160 0 -1.0 | 540 0 -0.050 | 429.8 | 470 | 37.385 | 22.43 | 3.9 | 131 |
| Size (D) | B | M | A | O | dK | Static load C0 kN | Dynamic load C kN | Tilting angle α (o) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 320 0 -0.040 | 160 | 135 0 -0.90 | 440 0 -0.045 | 344.6 | 380 | 21.42 | 12.85 | 4 | 76 |
| 340 0 -0.040 | 160 | 135 0 -0.90 | 460 0 -0.045 | 366.6 | 400 | 22.55 | 13.53 | 3.8 | 80 |
| 360 0 -0.040 | 160 | 135 0 -0.90 | 480 0 -0.045 | 388.3 | 420 | 23.675 | 14.205 | 3.6 | 86 |
| 380 0 -0.040 | 190 | 160 0 -1.0 | 520 0 -0.050 | 407.9 | 450 | 30.98 | 18.59 | 4.1 | 124.5 |
| 400 0 -0.040 | 190 | 160 0 -1.0 | 540 0 -0.050 | 429.8 | 470 | 32.37 | 19.415 | 3.9 | 131 |
