GE-FW-NIRO (-2RS)

klzné ložiská s vyšším uhlom natočenia cez širšiu guľu, NIRO/PTFE, bezúdržbové

vložka:
nehrdzavejúca oceľ 1.4571, Aisi 316Ti, s PTFE vložkou

od veľkosti 80 s vysokovýkonnou PTFE zlúčeninou

od veľkosti 20 dostupné s tesnením (-2RS) po oboch stranách

guľa:
nehrdzavejúca oceľ 1.4034, tvrdená, leštená

tesnenie:
H-Ecopur

CAD DATA

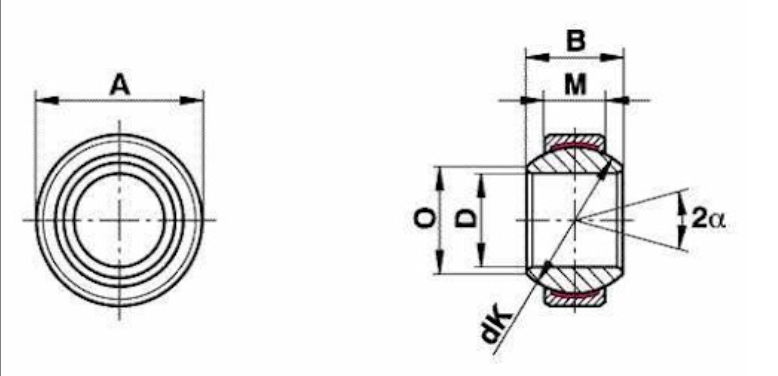

Size (D)BMAOdKStatic load C0 kNStatic load C0 kN -2RSDynamic load C kNDynamic load C kN -2RSPivoting angle α (o)Weight (g)
04 0
-0.008
7414 0
-0.008
7.11094205
05 0
-0.008
9516 0
-0.008
9.31315.67218
06 0
-0.008
9516 0
-0.008
9.31315.67219
08 0
-0.008
11619 0
-0.009
11.61623.4102114
10 0
-0.008
12722 0
-0.009
13.41832141821
12 0
-0.008
15926 0
-0.009
162250301833
15 0
-0.008
161030 0
-0.009
19.22565391649
17 0
-0.008
201235 0
-0.011
212990.5541983
20 0
-0.010
251642 0
-0.011
25.235.5159137967817153
25 0
-0.010
281847 0
-0.011
29.540.71971551188917203
30 0
-0.010
322055 0
-0.013
34.44729821715312417304
35 0
-0.012
352262 0
-0.013
39.753370.627619015816408
40 0
-0.012
402568 0
-0.013
44.76048135324720217542
45 0
-0.012
432875 0
-0.013
506659845730826115713
50 0
-0.012
563690 0
-0.015
57.180935722481413171420
60 0
-0.015
6340105 0
-0.015
67921204976619558172090
70 0
-0.015
7045120 0
-0.015
78.210515401246792712163010
80 0
-0.015
7550130 0
-0.018
87.1115189215251080872143610
90 0
-0.020
8555150 0
-0.018
98.31302366199713501141155500
100 0
-0.020
8555160 0
-0.023
111.21402548215114601229146040
110 0
-0.020
10070180 0
-0.025
124.81603752318621401821129740
120 0
-0.020
11570210 0
-0.030
138.4180453018901615100
140 0
-0.025
13080230 0
-0.030
151.9200576024001618900
160 0
-0.025
13580260 0
-0.035
180225648027001624800
180 0
-0.025
155100290 0
-0.035
196.1250900037501435900
200 0
-0.030
165100320 0
-0.040
220275990041201544900
220 0
-0.030
175100340 0
-0.040
243.63001080045001650900
240 0
-0.030
190110370 0
-0.040
263.63251287053601565300
260 0
-0.035
205120400 0
-0.040
283.63501512063001582000
280 0
-0.034
210120430 0
-0.045
310.63751620067501596600
