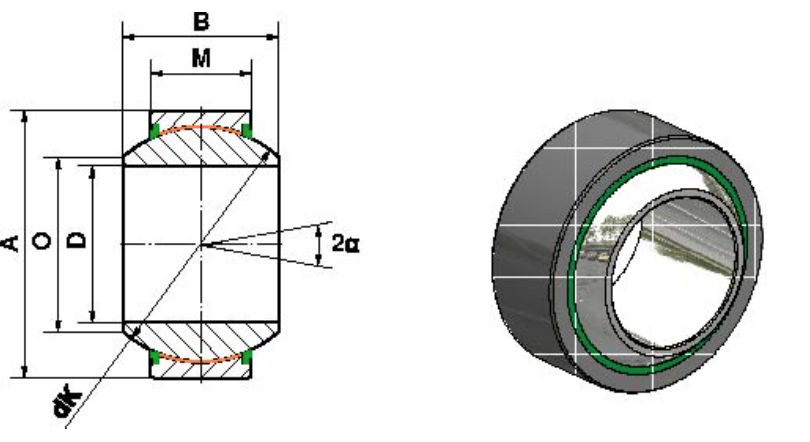

GE-GW (-2RS)
guľové klzné ložiská s väčším uhlom sklonu vďaka širšiemu vnútornému krúžku (FLUROGLIDE®), DIN ISO 12240-1, bezúdržbové vonkajší krúžok: ložisková oceľ 100Cr6, tvrdená, fosfátovaná, FLUROGLIDE vnútorný krúžok: ložisková oceľ 100Cr6, tvrdená, leštená, tvrdý chróm Na vyžiadanie dostupné z nehrdzavejúcej ocele |
Size (D) | B | M | A | O | dK | Static load C0 kN | Dynamic load C kN | Tilting angle α (o) | Weight (g) |
---|---|---|---|---|---|---|---|---|---|
20 0 -0.010 | 25 | 16 | 42 0 -0.011 | 25.2 | 35.5 | 182 | 110 | 17 | 153 |
25 0 -0.010 | 28 | 18 | 47 0 -0.011 | 29.5 | 40.7 | 272 | 162 | 17 | 203 |
30 0 -0.010 | 32 | 20 | 55 0 -0.013 | 34.4 | 47 | 350 | 210 | 17 | 280 |
35 0 -0.012 | 35 | 22 | 62 0 -0.013 | 39.7 | 53 | 462 | 277 | 16 | 380 |
40 0 -0.012 | 40 | 25 | 68 0 -0.013 | 44.7 | 60 | 600 | 360 | 17 | 530 |
45 0 -0.012 | 43 | 28 | 75 0 -0.013 | 50 | 66 | 737 | 442 | 15 | 670 |
50 0 -0.012 | 56 | 36 | 90 0 -0.015 | 57.1 | 80 | 1150 | 690 | 17 | 1400 |
60 0 -0.015 | 63 | 40 | 105 0 -0.015 | 67 | 92 | 1472 | 883 | 17 | 2100 |
70 0 -0.015 | 70 | 45 | 120 0 -0.015 | 78.2 | 105 | 1875 | 1125 | 16 | 3000 |
80 0 -0.015 | 75 | 50 | 130 0 -0.018 | 87.1 | 115 | 2300 | 1380 | 14 | 3600 |
90 0 -0.020 | 85 | 55 | 150 0 -0.018 | 98.3 | 130 | 2860 | 1716 | 15 | 5300 |
100 0 -0.020 | 85 | 55 | 160 0 -0.025 | 111.2 | 140 | 3075 | 1845 | 14 | 6000 |
110 0 -0.020 | 100 | 70 | 180 0 -0.025 | 124.8 | 160 | 4475 | 2685 | 12 | 9800 |
120 0 -0.020 | 115 | 70 | 210 0 -0.030 | 138.4 | 180 | 5025 | 3015 | 16 | 14600 |
140 0 -0.025 | 130 | 80 | 230 0 -0.030 | 151.9 | 200 | 6400 | 3840 | 16 | 18600 |
160 0 -0.025 | 135 | 80 | 260 0 -0.035 | 180 | 225 | 7200 | 4320 | 16 | 24900 |
180 0 -0.025 | 155 | 100 | 290 0 -0.035 | 196.1 | 250 | 10000 | 6000 | 14 | 33600 |
200 0 -0.030 | 165 | 100 | 320 0 -0.040 | 220 | 275 | 11000 | 6600 | 15 | 44700 |
220 0 -0.030 | 175 | 100 | 340 0 -0.040 | 243.6 | 300 | 12000 | 7200 | 16 | 50800 |
240 0 -0.030 | 190 | 110 | 370 0 -0.040 | 263.6 | 325 | 14250 | 8550 | 15 | 64000 |
260 0 -0.035 | 205 | 120 | 400 0 -0.040 | 283.6 | 350 | 16750 | 10050 | 15 | 81800 |
280 0 -0.035 | 210 | 120 | 430 0 -0.045 | 310.6 | 375 | 18000 | 10800 | 15 | 96500 |
