GE-SWE
vysoko odolné uhlové klzné ložiská na použitie pri vysokom radiálnom zaťažení v kombinácii s axiálnym zaťažením (FLUROGLIDE®), bezúdržbové
Vonkajší disk:
ložisková oceľ 100Cr6, tvrdená, fosfátovaná, s FLUROGLIDE vložkou
Vnútorný disk:
ložisková oceľ 100Cr6, tvrdená, leštená, tvrdný chróm
Na vyžiadanie dostupné v prevedení z nehrdzavejúcej ocele.

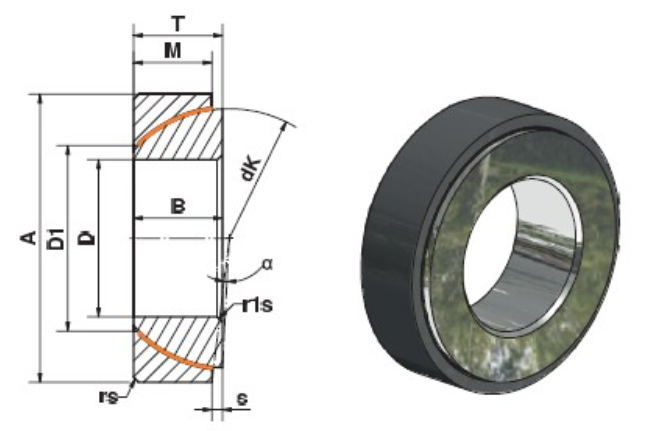

| Size (D) | D1 | B | M | A | T | S | rs, r1s min | dK | Static radial load C0 kN | Dynamic radial load C kN | Tilting angle α (o)≈ | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 25 0 -0.012 | 31.8 | 15 | 14 | 47 0 -0.014 | 15 +0.25 -0.40 | 0.6 | 1.0 | 42 | 235 | 141 | 2.5 | 148 |
| 28 0 -0.012 | 35.8 | 15 | 15 | 52 0 -0.016 | 16 +0.25 -0.40 | 1.0 | 1.0 | 47 | 287 | 171 | 2.0 | 186 |
| 30 0 -0.012 | 36.8 | 17 | 15 | 55 0 -0.016 | 17 +0.25 -0.40 | 1.3 | 1.0 | 49.5 | 298 | 179 | 4.5 | 208 |
| 35 0 -0.012 | 42.7 | 18 | 16 | 62 0 -0.016 | 18 +0.25 -0.40 | 2.1 | 1.0 | 55.5 | 345 | 207 | 4.0 | 268 |
| 40 0 -0.012 | 47.7 | 19 | 17 | 68 0 -0.016 | 19 +0.25 -0.40 | 2.8 | 1.0 | 62 | 424 | 254 | 3.5 | 327 |
| 45 0 -0.012 | 53.7 | 20 | 18 | 75 0 -0.016 | 20 +0.25 -0.40 | 3.5 | 1.0 | 68.5 | 494 | 296 | 3.0 | 416 |
| 50 0 -0.012 | 59.7 | 20 | 19 | 80 0 -0.016 | 20 +0.25 -0.40 | 4.3 | 1.0 | 74 | 567 | 340 | 1.5 | 455 |
| 55 0 -0.015 | 62.7 | 23 | 20 | 90 0 -0.018 | 23 +0.25 -0.50 | 5.0 | 1.0 | 82 | 681 | 408 | 4.0 | 645 |
| 60 0 -0.015 | 70 | 23 | 21 | 95 0 -0.018 | 23 +0.25 -0.50 | 5.7 | 1.1 | 88.5 | 784 | 470 | 2.5 | 714 |
| 65 0 -0.015 | 76.6 | 23 | 22 | 100 0 -0.018 | 23 +0.25 -0.50 | 6.5 | 1.1 | 93.5 | 836 | 502 | 1.0 | 759 |
| 70 0 -0.015 | 82.6 | 25 | 23 | 110 0 -0.018 | 25 +0.25 -0.50 | 7.2 | 1.1 | 102 | 972 | 583 | 2.0 | 1040 |
| 80 0 -0.015 | 91.6 | 29 | 25.5 | 125 0 -0.020 | 29 +0.25 -0.50 | 8.6 | 1.1 | 115 | 1184 | 711 | 3.5 | 1540 |
| 90 0 -0.020 | 100.9 | 32 | 28 | 140 0 -0.020 | 32 +0.25 -0.60 | 10.1 | 1.5 | 128.5 | 1490 | 894 | 3.5 | 2090 |
| 100 0 -0.020 | 114.6 | 32 | 31 | 150 0 -0.020 | 32 +0.25 -0.60 | 11.6 | 1.5 | 141 | 1848 | 1109 | 0.5 | 2340 |
| 110 0 -0.020 | 126.5 | 38 | 34 | 170 0 -0.020 | 38 +0.25 -0.60 | 13 | 2.0 | 155 | 1967 | 1180 | 3.0 | 3680 |
| 120 0 -0.020 | 136.5 | 38 | 37 | 180 0 -0.025 | 38 +0.25 -0.60 | 14.5 | 2.0 | 168 | 2585 | 1551 | 0.5 | 3970 |
| 130 0 -0.020 | 144 | 45 | 43 | 200 0 -0.025 | 45 +0.35 -0.70 | 18 | 2.5 | 188 | 3412 | 2047 | 1.0 | 5920 |
| 140 0 -0.020 | 161.5 | 45 | 43 | 210 0 -0.025 | 45 +0.35 -0.70 | 19 | 2.5 | 198 | 3286 | 1972 | 1.0 | 6330 |
| 150 0 -0.025 | 171.4 | 48 | 46 | 225 0 -0.030 | 48 +0.35 -0.70 | 20 | 3.0 | 211 | 3814 | 2288 | 1.0 | 8010 |
| 160 0 -0.025 | 182.4 | 51 | 49 | 240 0 -0.030 | 51 +0.35 -0.70 | 20 | 3.0 | 225 | 4524 | 2714 | 1.0 | 9790 |
| 170 0 -0.025 | 194.4 | 57 | 55 | 260 0 -0.035 | 57 +0.35 -0.70 | 21 | 3.0 | 246 | 5872 | 3523 | 1.0 | 12300 |
| 180 0 -0.025 | 206.4 | 64 | 61 | 280 0 -0.035 | 64 +0.35 -0.70 | 21 | 3.0 | 260 | 6536 | 3922 | 1.0 | 17400 |
| 190 0 -0.030 | 212.5 | 64 | 62 | 290 0 -0.035 | 64 +0.35 -0.80 | 26 | 3.0 | 275 | 7352 | 4410 | 0.5 | 18200 |
| 200 0 -0.030 | 229.4 | 70 | 66 | 310 0 -0.035 | 70 +0.35 -0.80 | 26 | 3.0 | 290 | 7725 | 4635 | 1.5 | 23800 |
