GE-SX
guľové ložiská s kosouhlým stykom, Steel-on-Steel, ošetrené disulfidom molybdénu MoS2, znovunamazateľné
na použitie pri jednosmerných, dynamických radiálnych a axiálnych zaťaženiach
vonkajší krúžok:
ložisková oceľ 100Cr6, Aisi 52100, tvrdená, fosfátovaná, ošetrená disulfidom molybdénu MoS2
vnútorný krúžok:
ložisková oceľ 100Cr6, Aisi 52100, tvrdená, fosfátovaná, ošetrená disulfidom molybdénu MoS2

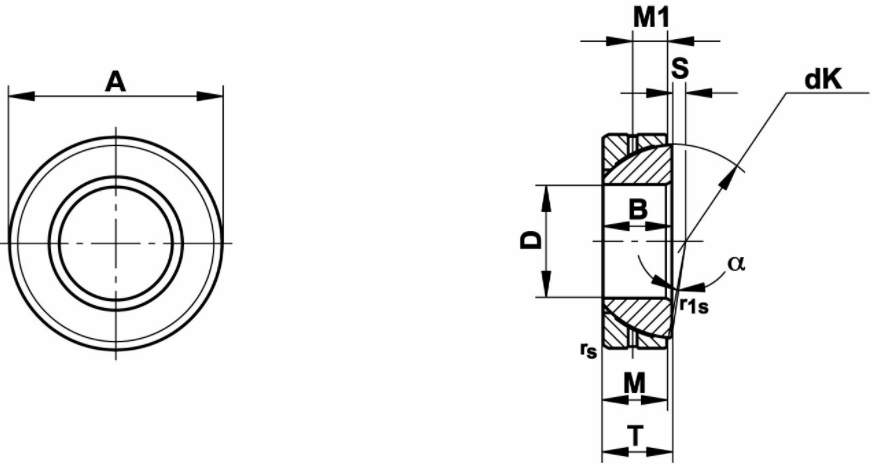

| Size (D) | B | M | A | T | S | M1 | rs, r1s min | dK | Static radial load C0 kN | Dynamic radial load C kN | Pivoting angle α (o) | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 25 0 -0.012 | 15 | 14 | 47 0 -0.014 | 15 +0.25 -0.40 | 0.6 | 7.5 | 1 | 42 | 250 | 50 | 2.5 | 148 |
| 28 0 -0.012 | 15 | 15 | 52 0 -0.016 | 16 +0.25 -0.40 | 1 | 8 | 1 | 47 | 300 | 60 | 2 | 186 |
| 30 0 -0.012 | 17 | 15 | 55 0 -0.016 | 17 +0.25 -0.40 | 1.3 | 8.5 | 1 | 49.5 | 315 | 63 | 4.5 | 208 |
| 32 0 -0.012 | 17 | 16 | 58 0 -0.016 | 17 +0.25 -0.40 | 2 | 8.5 | 1 | 52 | 354 | 71 | 2 | 241 |
| 35 0 -0.012 | 18 | 16 | 62 0 -0.016 | 18 +0.25 -0.40 | 2.1 | 9 | 1 | 55.5 | 390 | 78 | 4 | 268 |
| 40 0 -0.012 | 19 | 17 | 68 0 -0.016 | 19 +0.25 -0.40 | 2.8 | 9.5 | 1 | 62 | 463 | 92 | 3.5 | 327 |
| 45 0 -0.012 | 20 | 18 | 75 0 -0.016 | 20 +0.25 -0.40 | 3.5 | 10 | 1 | 68.5 | 540 | 108 | 3 | 416 |
| 50 0 -0.012 | 20 | 19 | 80 0 -0.016 | 20 +0.25 -0.40 | 4.3 | 10 | 1 | 74 | 618 | 123 | 1.5 | 455 |
| 55 0 -0.015 | 23 | 20 | 90 0 -0.018 | 23 +0.25 -0.50 | 5 | 11.5 | 1.1 | 82 | 721 | 144 | 4 | 645 |
| 60 0 -0.015 | 23 | 21 | 95 0 -0.018 | 23 +0.25 -0.50 | 5.7 | 11.5 | 1.1 | 88.5 | 817 | 163 | 2.5 | 714 |
| 65 0 -0.015 | 23 | 22 | 100 0 -0.018 | 23 +0.25 -0.50 | 6.5 | 11.5 | 1.1 | 93.5 | 905 | 180 | 1 | 759 |
| 70 0 -0.015 | 25 | 23 | 110 0 -0.018 | 25 +0.25 -0.50 | 7.2 | 12.5 | 1.1 | 102 | 1030 | 206 | 2 | 1040 |
| 75 0 -0.015 | 25 | 24 | 115 0 -0.018 | 25 +0.25 -0.50 | 7.9 | 12.5 | 1.1 | 107 | 1129 | 220 | 1 | 1120 |
| 80 0 -0.015 | 29 | 25.5 | 125 0 -0.020 | 29 +0.25 -0.50 | 8.6 | 14.5 | 1.1 | 115 | 1290 | 258 | 3.5 | 1540 |
| 85 0 -0.020 | 29 | 26.5 | 130 0 -0.020 | 29 +0.25 -0.50 | 9.4 | 14.5 | 1.1 | 122 | 1422 | 284 | 2 | 1610 |
| 95 0 -0.020 | 32 | 29.5 | 145 0 -0.020 | 32 +0.25 -0.60 | 10.8 | 16 | 1.5 | 135 | 1750 | 350 | 2 | 2220 |
| 100 0 -0.020 | 32 | 31 | 150 0 -0.020 | 32 +0.25 -0.60 | 11.6 | 16 | 1.5 | 141 | 1923 | 384 | 0.5 | 2340 |
| 105 0 -0.020 | 35 | 32.5 | 160 0 -0.025 | 35 +0.25 -0.60 | 12.3 | 17.5 | 2 | 148 | 2116 | 423 | 2 | 2930 |
| 110 0 -0.020 | 38 | 34 | 170 0 -0.025 | 38 +0.25 -0.60 | 13 | 19 | 2 | 155 | 2318 | 463 | 3 | 3680 |
| 120 0 -0.020 | 38 | 37 | 180 0 -0.025 | 38 +0.25 -0.60 | 14.5 | 19 | 2 | 168 | 2735 | 547 | 0.5 | 3970 |
| 130 0 -0.020 | 45 | 43 | 200 0 -0.030 | 45 +0.35 -0.70 | 18 | 19 | 2.5 | 188 | 3550 | 710 | 1 | 5920 |
| 140 0 -0.020 | 45 | 43 | 210 0 -0.030 | 45 +0.35 -0.70 | 19 | 19 | 2.5 | 198 | 3740 | 740 | 1 | 6330 |
| 150 0 -0.025 | 48 | 46 | 225 0 -0.030 | 48 +0.35 -0.70 | 20 | 20.5 | 3 | 211 | 4270 | 850 | 1 | 8010 |
| 160 0 -0.025 | 51 | 49 | 240 0 -0.030 | 51 +0.35 -0.70 | 20 | 22 | 3 | 225 | 4850 | 970 | 1 | 9790 |
| 170 0 -0.025 | 57 | 55 | 260 0 -0.035 | 57 +0.35 -0.70 | 21 | 27 | 3 | 246 | 5950 | 1190 | 1 | 12300 |
| 180 0 -0.025 | 64 | 61 | 280 0 -0.035 | 64 +0.35 -0.70 | 21 | 28 | 3 | 260 | 6970 | 1395 | 1 | 17400 |
| 190 0 -0.030 | 64 | 62 | 290 0 -0.035 | 64 +0.35 -0.80 | 26 | 30 | 3 | 275 | 7500 | 1500 | 0.5 | 18200 |
| 200 0 -0.030 | 70 | 66 | 310 0 -0.035 | 70 +0.35 -0.80 | 26 | 30 | 3 | 290 | 8420 | 1680 | 1.5 | 23800 |
