Séria K – GIO
kĺbové hlavice pre vysoké axiálne zaťaženie iba v jednom smere (s obmedzenými kmitavými pohybmi), bez vložky, vnútorný závit
púzdro:
do veľkosti 12 sústružené z automatovej ocele 9SMnPb28K, 12L13, pozinkované
od veľkosti 14 kované z tepelne upravenej ocele C22, M1023, pozinkované
guľa:
ložisková oceľ 100Cr6, AISI 52100, tvrdená, leštená

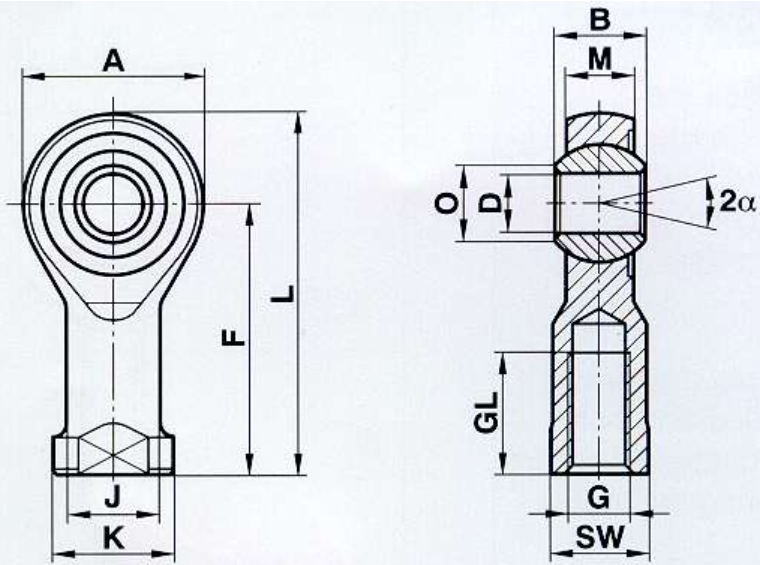

Size (D H7) | B | M | A | F | L | K | J | O | SW | G | GL | Static load C0 kN | Dynamic load C kN | Limiting speed rev/min | Pivoting angle α (o) | Weight (g) |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
5 | 8 | 6 | 18 | 27 | 36 | 11 | 9 | 7.7 | 9 | M5 | 10 | 12 | 2.2 | X | 13 | 18 |
6 | 9 | 6.75 | 20 | 30 | 40 | 13 | 10 | 8.9 | 11 | M6 | 12 | 14.3 | 2.8 | X | 13 | 27 |
8 | 12 | 9 | 24 | 36 | 48 | 16 | 12.5 | 10.5 | 13 | M8 | 16 | 21.7 | 4.6 | X | 14 | 46 |
10 | 14 | 10.5 | 28 | 43 | 57 | 19 | 15 | 12.9 | 17 | M10 | 20 | 27.8 | 6.5 | X | 13 | 76 |
12 | 16 | 12 | 32 | 50 | 66 | 22 | 17.5 | 15.4 | 19 | M12 | 22 | 35 | 8.5 | X | 13 | 115 |
14 | 19 | 13.5 | 36 | 57 | 75 | 25 | 20 | 16.8 | 22 | M14 | 25 | 32.5 | 11 | X | 16 | 170 |
16 | 21 | 15 | 42 | 64 | 85 | 27 | 22 | 19.3 | 22 | M16 | 28 | 46 | 14 | X | 15 | 230 |
20 | 25 | 18 | 50 | 77 | 102 | 34 | 27.5 | 24.3 | 32 | M20x1.5 | 33 | 63 | 20 | X | 14 | 415 |
