Séria K – GIRSW-RR.316
kĺbové hlavice na použitie pri vysokom dynamickom zaťažení tlakom a ťahom v korozívnom prostredí
(bezúdržbové), vnútorný závit
púzdro:
kované z nehrdzavejúcej ocele 1.4057, Aisi 431, leštené
veľkosť 40 sústružená z nehrdzavejúcej ocele 1.4057, Aisi 431
vložka:
nehrdzavejúca oceľ 1.4571 s PTFE vložkou na vnútornej strane
guľa:
nehrdzavejúca oceľ 1.4404, Aisi 52100, tvrdená, leštená
Na vyžiadanie tiež s tesnením alebo so závitovou skrutkou

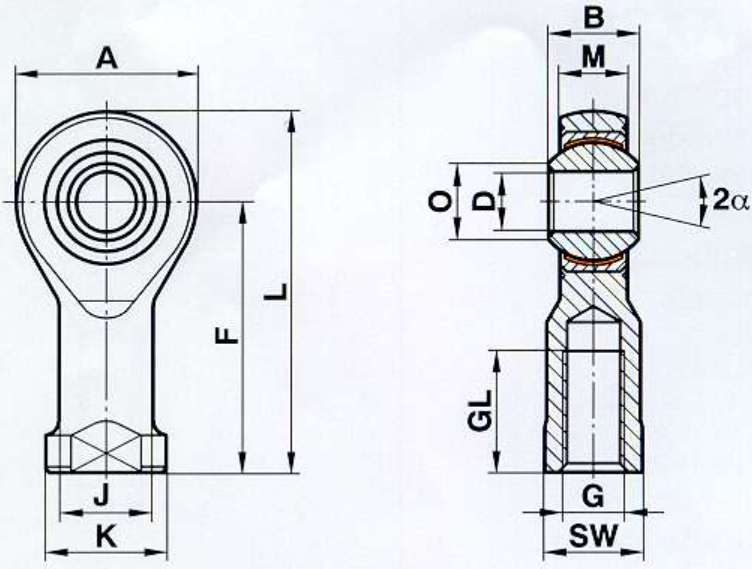

Size (D H7) | B | M | A | F | L | K | J | O | SW | G | GL | Static load C0 kN | Dynamic load C kN | Limiting speed rev/min | Pivoting angle α (o) | Weight (g) |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
4 | 7 | 5.25 | 14 | 24 | 31 | 9.5 | 7.8 | 6.5 | 8 | M4 | 12 | 2.5 | 5.1 | 14 | 11 | |
5 | 8 | 6 | 18 | 27 | 36 | 11 | 9 | 7.7 | 9 | M5 | 10 | 11.8 | 7.5 | 600 | 13 | 18 |
6 | 9 | 6.75 | 20 | 30 | 40 | 13 | 10 | 8.9 | 11 | M6 | 12 | 13.1 | 9.3 | 530 | 13 | 27 |
8 | 12 | 9 | 24 | 36 | 48 | 16 | 12.5 | 10.4 | 13 | M8 | 16 | 20.7 | 16.7 | 420 | 14 | 46 |
10 | 14 | 10.5 | 28 | 43 | 57 | 19 | 15 | 12.9 | 17 | M10 | 20 | 28.3 | 23.4 | 350 | 13 | 76 |
12 | 16 | 12 | 32 | 50 | 66 | 22 | 17.5 | 15.4 | 19 | M12 | 22 | 34.5 | 32 | 300 | 13 | 115 |
14 | 19 | 13.5 | 36 | 57 | 75 | 25 | 20 | 16.8 | 22 | M14 | 25 | 39.5 | 42 | 260 | 16 | 170 |
16 | 21 | 15 | 42 | 64 | 85 | 27 | 22 | 19.3 | 22 | M16 | 28 | 60.5 | 52.5 | 230 | 15 | 230 |
18 | 23 | 16.5 | 46 | 71 | 94 | 31 | 25 | 21.8 | 27 | M18x1.5 | 32 | 73 | 64 | 210 | 15 | 320 |
20 | 25 | 18 | 50 | 77 | 102 | 34 | 27.5 | 24.3 | 32 | M20x1.5 | 33 | 83 | 78 | 190 | 14 | 415 |
22 | 28 | 20 | 54 | 84 | 111 | 37 | 30 | 25.8 | 32 | M22x1.5 | 37 | 100 | 97 | 170 | 15 | 540 |
25 | 31 | 22 | 60 | 94 | 124 | 42 | 33.5 | 29.6 | 36 | M24x2 | 42 | 118 | 122 | 150 | 15 | 750 |
30 | 37 | 25 | 70 | 110 | 145 | 50 | 40 | 34.8 | 41 | M30x2 | 51 | 155 | 168 | 130 | 17 | 1130 |
35 | 43 | 28 | 80 | 125 | 165 | 58 | 46 | 37.7 | 50 | M36x2 | 56 | 191 | 206 | 110 | 19 | 1600 |
40 | 49 | 35 | 90 | 142 | 187 | 69 | 57 | 44.2 | 60 | M42x2 | 60 | 235 | 286 | 100 | 16 | 2770 |
