Séria K – GLXS
klzné ložiská vhodné pri použití pri vysokých otáčkach
vonkajší krúžok:
sústružené z automatovej ocele 9SMnPb28K, 12L13, pozinkované
vložka:
špeciálny vysokopevnostný bronz CuSn8
guľa:
ložisková oceľ 100Cr6, AISI 52100, tvrdená, leštená
Táto rada je takisto dostupná so závitovou skrutkou (-BO)

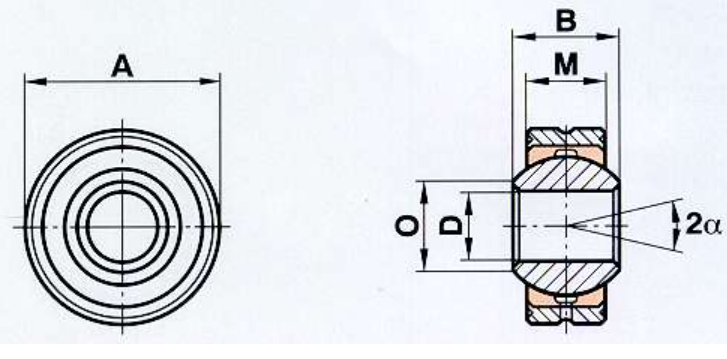

| Size (D H7) | B | M | A (h6) | O | dK | Static load C0 kN | Dynamic load C kN | Limiting speed rev/min | Pivoting angle α (o) | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|
| 031/2 | 6 | 4.5 | 12 | 5.1 | 7.94 | 10.8 | 1.8 | – | 14 | 4 |
| 041/2 | 7 | 5.25 | 14 | 6.5 | 9.52 | 14.5 | 2.5 | – | 14 | 6 |
| 05 | 8 | 6 | 16 | 7.7 | 11.11 | 19.8 | 3.3 | 1200 | 13 | 8 |
| 06 | 9 | 6.75 | 18 | 8.9 | 12.7 | 25.8 | 4.3 | 1500 | 13 | 12 |
| 08 | 12 | 9 | 22 | 10.4 | 15.87 | 42.6 | 7.1 | 1200 | 14 | 23 |
| 10 | 14 | 10.5 | 26 | 12.9 | 19.05 | 60 | 10 | 1000 | 13 | 38 |
| 12 | 16 | 12 | 30 | 15.4 | 22.22 | 80 | 13.5 | 860 | 13 | 58 |
| 14 | 19 | 13.5 | 34 | 16.8 | 25.4 | 102.5 | 17 | 750 | 16 | 83 |
| 16 | 21 | 15 | 38 | 19.3 | 28.57 | 128.5 | 21.5 | 660 | 15 | 115 |
| 18 | 23 | 16.5 | 42 | 21.8 | 31.75 | 157 | 26 | 600 | 15 | 150 |
| 20 | 25 | 18 | 46 | 24.3 | 34.92 | 188.5 | 31.5 | 540 | 14 | 200 |
| 22 | 28 | 20 | 50 | 25.8 | 38.1 | 229 | 38 | 500 | 15 | 270 |
| 25 | 31 | 22 | 56 | 29.6 | 42.86 | 293 | 47 | 440 | 15 | 375 |
| 30 | 37 | 25 | 66 | 34.8 | 50.8 | 381 | 64 | 370 | 17 | 540 |
| 35 | 43 | 28 | 78 | 37.7 | 57.15 | 480 | 80 | 330 | 19 | 850 |
| 40 | 49 | 35 | 87 | 44.2 | 65.96 | 693 | 116 | 290 | 16 | 1400 |
1/2 bez lubrikačného otvoru; vonkajší krúžok ako jeden celok z CuSn8
