Séria K – GXS-R
klzné ložiská vhodné pri použití pri vysokých otáčkach
vložka:
špeciálny vysokopevnostný bronz CuSn8
guľa:
nehrdzavejúca oceľ 1.4034, AISI 420, tvrdená, leštená
Táto rada je takisto dostupná so závitovou skrutkou (-BO) a v prevedení z nehrdzavejúcej ocele

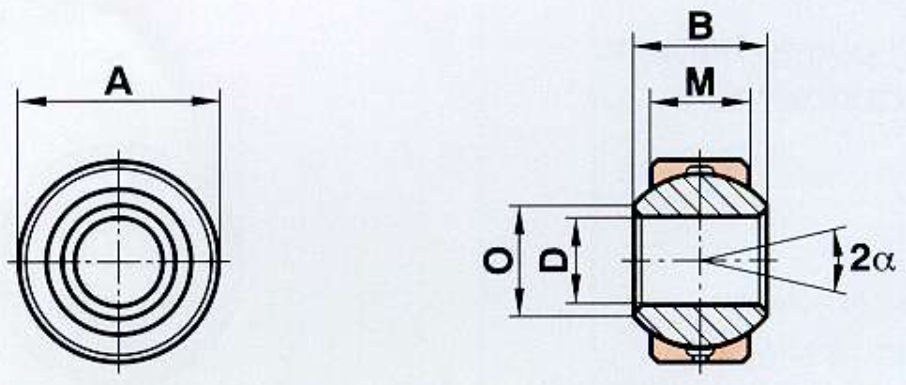

Size (D H7) | D | B | M | A (h6) | O | dK | Static load C0 kN | Dynamic load C kN | Limiting speed rev/min | Pivoting angle α (o) | Weight (g) |
---|---|---|---|---|---|---|---|---|---|---|---|
021 | 2 | 4.5 | 3.6 | 6.5 | 2.6 | 5.2 | 6.6 | 1.1 | 16 | 3 | |
031 | 3 | 6 | 4.5 | 9 | 5.1 | 7.94 | 10.8 | 1.8 | – | 14 | 4 |
041 | 4 | 7 | 5.25 | 12 | 6.5 | 9.52 | 14.5 | 2.5 | – | 14 | 4 |
051 | 5 | 8 | 6 | 13 | 7.7 | 11.11 | 19.8 | 3.3 | – | 13 | 5 |
06 | 6 | 9 | 6.75 | 15 | 8.9 | 12.7 | 25.8 | 4.3 | 1500 | 13 | 8 |
06.16 | 6 | 9 | 6.75 | 16 | 8.9 | 12.7 | 25.8 | 4.3 | 1500 | 13 | 9 |
08 | 8 | 12 | 9 | 18 | 10.4 | 15.87 | 42.6 | 7.1 | 1200 | 14 | 14 |
08.19 | 8 | 12 | 9 | 19 | 10.4 | 15.87 | 42.6 | 7.1 | 1200 | 14 | 16 |
10 | 10 | 14 | 10.5 | 21 | 12.9 | 19.05 | 60 | 10 | 1000 | 13 | 22 |
10.22 | 10 | 14 | 10.5 | 22 | 12.9 | 19.05 | 60 | 10 | 1000 | 13 | 25 |
12 | 12 | 16 | 12 | 24.5 | 15.4 | 22.22 | 80 | 13.5 | 860 | 13 | 35 |
12.26 | 12 | 16 | 12 | 26 | 15.4 | 22.22 | 80 | 13.5 | 860 | 13 | 40 |
14 | 14 | 19 | 13.5 | 28 | 16.8 | 25.4 | 102.5 | 17 | 750 | 16 | 51 |
14.29 | 14 | 19 | 13.5 | 29 | 16.8 | 25.4 | 102.5 | 17 | 750 | 16 | 56 |
16 | 16 | 21 | 15 | 31.5 | 19.3 | 28.57 | 128.5 | 21.5 | 660 | 15 | 72 |
16.32 | 16 | 21 | 15 | 32 | 19.3 | 28.57 | 128.5 | 21.5 | 660 | 15 | 76 |
18 | 18 | 23 | 16.5 | 34.5 | 21.8 | 31.75 | 157 | 26 | 600 | 15 | 94 |
18.35 | 18 | 23 | 16.5 | 35 | 21.8 | 31.75 | 157 | 26 | 600 | 15 | 97 |
20 | 20 | 25 | 18 | 38 | 24.3 | 34.92 | 188.5 | 31.5 | 540 | 14 | 124 |
20.40 | 20 | 25 | 18 | 40 | 24.3 | 34.92 | 188.5 | 31.5 | 540 | 14 | 141 |
22 | 22 | 28 | 20 | 41 | 25.8 | 38.1 | 229 | 38 | 500 | 15 | 158 |
22.42 | 22 | 28 | 20 | 42 | 25.8 | 38.1 | 229 | 38 | 500 | 15 | 168 |
25 | 25 | 31 | 22 | 46 | 29.6 | 42.86 | 293 | 47 | 440 | 15 | 218 |
25.47 | 25 | 31 | 22 | 47 | 29.6 | 42.86 | 293 | 47 | 440 | 15 | 231 |
30 | 30 | 37 | 25 | 54 | 34.8 | 50.8 | 381 | 64 | 370 | 17 | 349 |
30.55 | 30 | 37 | 25 | 55 | 34.8 | 50.8 | 381 | 64 | 370 | 17 | 362 |
35 | 35 | 43 | 28 | 62 | 37.7 | 57.15 | 480 | 80 | 330 | 19 | 502 |
35.65 | 35 | 43 | 28 | 65 | 37.7 | 57.15 | 480 | 80 | 330 | 19 | 518 |
40 | 40 | 49 | 35 | 72 | 44.2 | 65.96 | 693 | 116 | 290 | 16 | 832 |
40.75 | 40 | 49 | 35 | 75 | 44.2 | 65.96 | 693 | 116 | 290 | 16 | 850 |
50 | 50 | 60 | 45 | 90 | 55.9 | 82 | 1100 | 185 | 230 | 14 | 1600 |
