Séria K – GXSW-RR

kĺbové kĺzavé ložiská vhodné pri použití pri vysokých otáčkach, bezúdržbové

vložka:
nehrdzavejúca oceľ 1.4571, s PTFE vložkou spojenou s vnútorným povrchom

guľa:
nehrdzavejúca oceľ 1.4034, AISI 420, tvrdená, leštená

Táto rada je takisto dostupná so závitovou skrutkou (-BO) a v prevedení z nehrdzavejúcej ocele

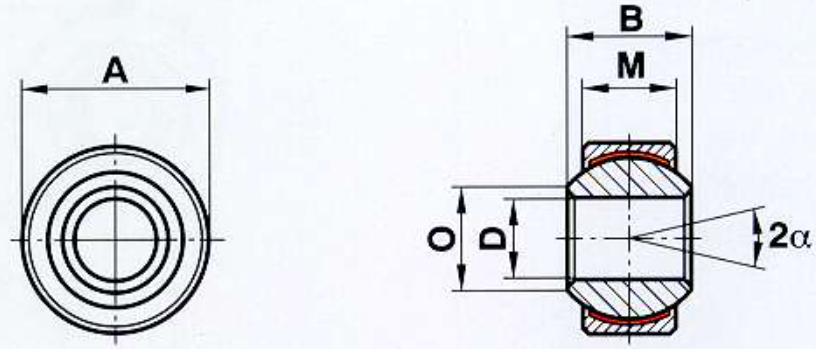

Size (D)D (H7)BMA (h6)OdKStatic load C0 kNDynamic load C kNLimiting speed rev/minPivoting angle α (o)Weight (g)
4475.25126.59.528.55.1700144
5586137.711.1112.57.5600136
6696.75158.912.715.59.3530138
06.16696.75168.912.715.59.3530139
881291810.415.8727.816.74201415
08.1981291910.415.8727.816.74201417
10101410.52112.919.053923.43501323
10.22101410.52212.919.053923.43501326
1212161224.515.422.2253.5323001335
12.261216122615.422.2253.5323001341
14141913.52816.825.470422601652
14.29141913.52916.825.470422601656
1616211531.519.328.578852.52301572
16.321621153219.328.578852.52301575
18182316.534.521.831.75106.5642101595
18.35182316.53521.831.75106.5642101597
202025183824.334.921307819014127
20.402025184024.334.921307819014142
222228204125.838.11629717015159
22.422228204225.838.11629717015169
252531224629.642.8620412215015222
25.472531224729.642.8620412215015230
303037255434.850.828116813017350
30.553037255534.850.828116813017369
353543286237.757.1534320611019505
35.653543286537.757.1534320611019545
404049357244.265.9649528610016832
40.754049357544.265.9649528610016894
505060459055.98280048580141640
