Séria K – GL
klzné ložiská vhodné na použitie pri axiálnom zaťažení
vonkajší krúžok:
sústružené z automatovej ocele 9SMnPB28K, pozinkované
vložka:
špeciálna mosadz CuZN40Al1
guľa:
ložisková oceľ 100Cr6, AISI 52100, tvrdená, leštená

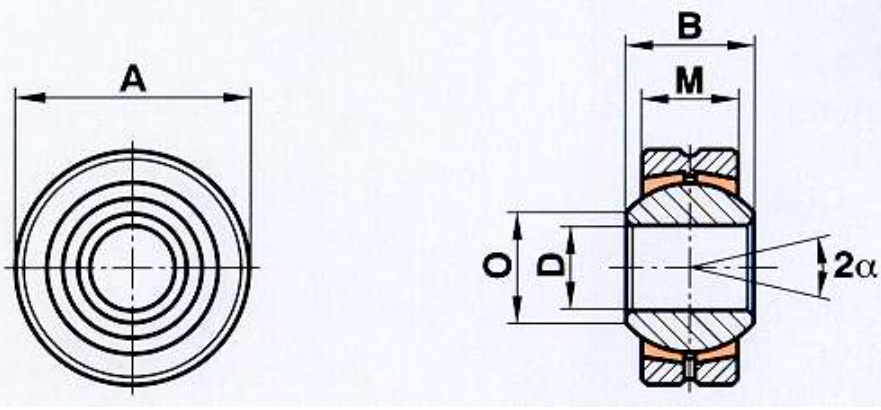

Size (D H7) | B | M | A (h6) | O | dK | Static load C0 kN | Dynamic load C kN | Limiting speed rev/min | Pivoting angle α (o) | Weight (g) |
---|---|---|---|---|---|---|---|---|---|---|
05 | 8 | 6 | 16 | 7.7 | 11.11 | 10 | 2.5 | 900 | 13 | 8 |
06 | 9 | 6.75 | 18 | 8.9 | 12.7 | 12.8 | 3.2 | 760 | 13 | 12 |
08 | 12 | 9 | 22 | 10.4 | 15.87 | 21.6 | 5.4 | 620 | 14 | 23 |
10 | 14 | 10.5 | 26 | 12.9 | 19.05 | 30 | 7.5 | 500 | 13 | 38 |
12 | 16 | 12 | 30 | 15.4 | 22.22 | 40 | 10 | 450 | 13 | 58 |
14 | 19 | 13.5 | 34 | 16.8 | 25.4 | 51.5 | 13 | 360 | 16 | 83 |
16 | 21 | 15 | 38 | 19.3 | 28.57 | 64.5 | 16 | 350 | 15 | 115 |
18 | 23 | 16.5 | 42 | 21.8 | 31.75 | 78.5 | 19.5 | 320 | 15 | 150 |
20 | 25 | 18 | 46 | 24.3 | 34.92 | 94.5 | 23.5 | 280 | 14 | 200 |
22 | 28 | 20 | 50 | 25.8 | 38.1 | 114 | 29 | 250 | 15 | 270 |
25 | 31 | 22 | 56 | 29.6 | 42.86 | 142 | 35 | 230 | 15 | 375 |
